【3】k8s搭建DashBoard

小强在学习的路上 2024-06-15 原文

前言

kubernetes中管理集群中资源的方式通常有四种：命令行、YAML、API和图形界面。其中dashboard是K8s官方的图形界面工具。使用简单，操作方便，能监控node和pod等。

1、创建recommended.yaml并写入下列

vi recommended.yaml

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.3.1
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
      annotations:
        seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
    spec:
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.6
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

2、设置访问端口

kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard
#将type: ClusterIP 改为 type: NodePort

3、查看要访问的端口

[root@master ~]# kubectl get svc -A | grep kubernetes-dashboard
kubernetes-dashboard   dashboard-metrics-scraper   ClusterIP   10.96.119.16   <none>        8000/TCP                 45m
kubernetes-dashboard   kubernetes-dashboard        NodePort    10.96.46.89    <none>        443:31113/TCP            45m

这里看到的是31113

再等pod run起来了，就可以登录了

[root@master ~]# kubectl apply -f recommended.yaml ^C
[root@master ~]# kubectl get pod -A
NAMESPACE              NAME                                         READY   STATUS              RESTARTS   AGE
kube-system            calico-kube-controllers-56c7cdffc6-trxkj     1/1     Running             1          19h
kube-system            calico-node-8zsdw                            1/1     Running             1          19h
kube-system            calico-node-khp6k                            1/1     Running             1          19h
kube-system            calico-node-vkqhc                            1/1     Running             1          19h
kube-system            coredns-7f89b7bc75-65jnr                     1/1     Running             1          19h
kube-system            coredns-7f89b7bc75-lrtqq                     1/1     Running             1          19h
kube-system            etcd-master                                  1/1     Running             1          19h
kube-system            kube-apiserver-master                        1/1     Running             1          19h
kube-system            kube-controller-manager-master               1/1     Running             1          19h
kube-system            kube-proxy-9k8ps                             1/1     Running             1          19h
kube-system            kube-proxy-nvzmj                             1/1     Running             1          19h
kube-system            kube-proxy-zph7s                             1/1     Running             1          19h
kube-system            kube-scheduler-master                        1/1     Running             1          19h
kubernetes-dashboard   dashboard-metrics-scraper-5b8896d7fc-s5plk   1/1     Running             0          49s
kubernetes-dashboard   kubernetes-dashboard-cb988587b-zwdbg         0/1     ContainerCreating   0          49s

用浏览器尝试打开

https://139.198.30.212:31113

4、创建访问账号

创建访问账号，准备一个yaml文件； vi dash.yaml

# 创建访问账号，准备一个yaml文件； vi dash.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard

kubectl apply -f dash.yaml

5、获取访问令牌

kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"

得到koken填到刚才浏览器打开的页面中，然后就成功了

eyJhbGciOiJSUzI1NiIsImtpZCI6IlZvcnVnTnJ3QnV6cGZkdUwyN25zOTVvTUpXX1NJWVp0X1ZpdDc2Z2NmUDQifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWhoZjVuIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiIzZjgwMGE0My1hNmJkLTQ1ZGUtYWRiMy0zZTViZDVkZTMzODUiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.BqaOb1TSlFi3X0ccq_LpGspHgNXBCtgtrYZa7gXMwxJhAtfz9beJCuT0vvlMXrlbCPPPNxVeK4_wIfce-2s5AO-L-oKSz-ynE53xDErCwumXPvprVtfgo3nMSXEqZ5eYVTRf5XsJgfDzZAtWYwyvenqQzGtvxYPznz2vuxIbZOcHQ7Pw7rah0LyEeWgPl7Mljnb_2_pxuphapsbYkDsuAOWqYxZSbVj9IBGl28XfKAXAkWT3P5-s-_EKp0ZVesvYKnzbDi8wrF0trwwAPe0nAfCyEEwUv1jFYtwRcs1SGbccfDbGL6xJXFugf4mVCKHZ1vhzi-PiUBRnmkWUw9teMQ

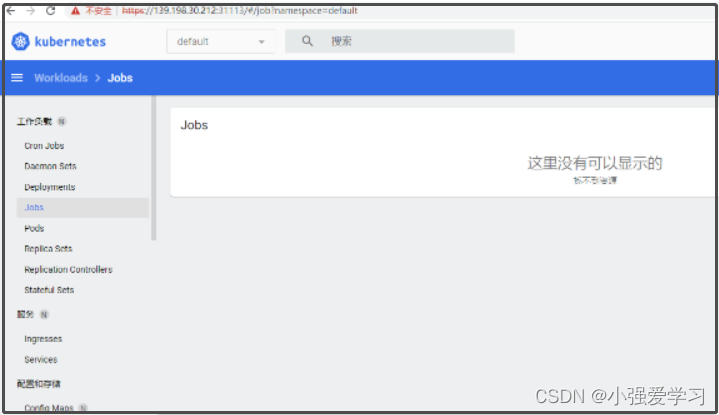

总体结构

1）头部header有logo，命名空间选择，搜索栏，创建资源按钮等。
2）蓝色一栏左侧为面包屑导航，右侧当点击相关资源，会出现编辑删除等按钮。
3）页面左侧为菜单栏，点击一级菜单会列出全部二级菜单内容，单击二级菜单，只显示该内容。
4）主干body为内容展示与操作区。内容包括集群中各类资源，操作基本为资源的增删改查。

菜单介绍

工作负载：可查看Deployments，Pods，Controllers等。
服务：可查看Ingress和Services等。
配置和存储：可查看Config Maps和Secrets等。
集群：可查看命名空间，Nodes，持久卷等。
