一、创建 SpringBoot 项目

1.1、创建一个空项目：传送门

1.2、添加 websocket 引用

<!-- websocket -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-websocket</artifactId>
</dependency>

1.3、添加 WebSocketConfig 配置文件

package com.example.demo.conf;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;

@Configuration
public class WebSocketConfig {
    /**
     * 注入一个ServerEndpointExporter,该Bean会自动注册使用@ServerEndpoint注解申明的websocket endpoint
     */
    @Bean
    public ServerEndpointExporter serverEndpointExporter() {
        return new ServerEndpointExporter();
    }

}

1.4、添加 WebSocketServer 核心代码

package com.example.demo.socket;

import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;

import javax.websocket.*;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;
import java.io.IOException;
import java.util.Enumeration;
import java.util.concurrent.ConcurrentHashMap;


@ServerEndpoint("/msgServer/{userId}")
@Component
@Scope("prototype")
public class WebSocketServer {

    /**
     * 静态变量，用来记录当前在线连接数。应该把它设计成线程安全的。
     */
    private static int onlineCount = 0;
    /**
     * concurrent包的线程安全Set，用来存放每个客户端对应的MyWebSocket对象。
     */
    private static ConcurrentHashMap<String, Session> webSocketMap = new ConcurrentHashMap<>();
    /**
     * 与某个客户端的连接会话，需要通过它来给客户端发送数据
     */
    private Session session;
    /**
     * 接收userId
     */
    private String userId = "";

    @OnOpen
    public void onOpen(Session session, @PathParam("userId") String userId) {
        this.session = session;
        this.userId = userId;
        /**
         * 连接被打开：向socket-map中添加session
         */
        webSocketMap.put(userId, session);
        System.out.println(userId + " - 连接建立成功...");
    }

    @OnMessage
    public void onMessage(String message, Session session) {
        try {
            this.sendMessage(message);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    @OnError
    public void onError(Session session, Throwable error) {
        System.out.println("连接异常...");
        error.printStackTrace();
    }

    @OnClose
    public void onClose() {
        System.out.println("连接关闭");
    }

    /**
     * 实现服务器主动推送
     */
    public void sendMessage(String message) throws IOException {
        if (message.equals("心跳")) {
            this.session.getBasicRemote().sendText(message);
        }
        Enumeration<String> keys = webSocketMap.keys();
        while (keys.hasMoreElements()) {
            String key = keys.nextElement();
            if (key.equals(this.userId)) {
                System.err.println("my id " + key);
                continue;
            }
            if (webSocketMap.get(key) == null) {
                webSocketMap.remove(key);
                System.err.println(key + " : null");
                continue;
            }
            Session sessionValue = webSocketMap.get(key);
            if (sessionValue.isOpen()) {
                System.out.println("发消息给: " + key + " ,message: " + message);
                sessionValue.getBasicRemote().sendText(message);
            } else {
                System.err.println(key + ": not open");
                sessionValue.close();
                webSocketMap.remove(key);
            }
        }
    }

    /**
     * 发送自定义消息
     */
    public static void sendInfo(String message, @PathParam("userId") String userId) throws IOException {
        System.out.println("发送消息到:" + userId + "，内容:" + message);
        if (!StringUtils.isEmpty(userId) && webSocketMap.containsKey(userId)) {
            webSocketMap.get(userId).getBasicRemote().sendText(message);
            //webSocketServer.sendMessage(message);
        } else {
            System.out.println("用户" + userId + ",不在线！");
        }
    }

    public static synchronized int getOnlineCount() {
        return onlineCount;
    }

    public static synchronized void addOnlineCount() {
        WebSocketServer.onlineCount++;
    }

    public static synchronized void subOnlineCount() {
        WebSocketServer.onlineCount--;
    }
}

二、编写测试HTML

<!DOCTYPE html>
<html>

	<head>
		<title>RTC视频通话测试页面</title>
		<meta charset="UTF-8"> <!-- for HTML5 -->
		<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
		<meta name="viewport" content="width=device-width,initial-scale=1,maximum-scale=1" />
	</head>
	<body>
		<style type="text/css">
			body {
				background: #000;
			}

			button {
				height: 40px;
				line-height: 40px;
				width: auto;
				padding: 0 15px;
				background: #ccc;
				border: none;
				border-radius: 10px;
				margin-bottom: 10px;
				overflow: hidden;
			}

			.wrap {
				width: 100vw;
				height: 100vh;
				display: flex;
				justify-content: center;
				align-items: center;
			}

			.video-box {
				border-radius: 20px;
				background: pink;
				position: relative;
				width: 800px;
				height: 600px;
				overflow: hidden;
			}

			.remote-video {
				width: 800px;
				height: 600px;
				border: 1px solid black;
				overflow: hidden;
			}

			.local-video {
				width: 320px;
				height: 240px;
				position: absolute;
				right: 0;
				bottom: 0;
				border-radius: 20px 0 0 0;
				overflow: hidden;
			}

			video {
				width: 100%;
				height: 100%;
			}
		</style>
		<div class="wrap">
			<div>
				<div>
					<button type="button" onclick="startVideo();">开启本机摄像和音频</button>
					<button type="button" onclick="connect();">建立连接</button>
					<button type="button" onclick="hangUp();">挂断</button>
					<button type="button" onclick="refreshPage();">刷新页面</button>
				</div>
				<div class="video-box">
					<div class="local-video">
						<video id="local-video" autoplay style=""></video>
					</div>
					<div class="remote-video">
						<video id="remote-video" autoplay></video>
					</div>
				</div>
			</div>
		</div>

		<script>
			// ===================以下是socket=======================
			var user = Math.round(Math.random() * 1000) + ""
			var socketUrl = "ws://localhost:8080/msgServer/" + user;
			var socket = null
			var socketRead = false
			window.onload = function() {

				socket = new WebSocket(socketUrl)
				socket.onopen = function() {
					console.log("成功连接到服务器...")
					socketRead = true
				}
				socket.onclose = function(e) {
					console.log('与服务器连接关闭: ' + e.code)
					socketRead = false
				}

				socket.onmessage = function(res) {
					var evt = JSON.parse(res.data)
					console.log(evt)
					if (evt.type === 'offer') {
						console.log("接收到offer,设置offer,发送answer....")
						onOffer(evt);
					} else if (evt.type === 'answer' && peerStarted) {
						console.log('接收到answer,设置answer SDP');
						onAnswer(evt);
					} else if (evt.type === 'candidate' && peerStarted) {
						console.log('接收到ICE候选者..');
						onCandidate(evt);
					} else if (evt.type === 'bye' && peerStarted) {
						console.log("WebRTC通信断开");
						stop();
					}
				}
			}

			// ===================以上是socket=======================

			var localVideo = document.getElementById('local-video');
			var remoteVideo = document.getElementById('remote-video');
			var localStream = null;
			var peerConnection = null;
			var peerStarted = false;
			var mediaConstraints = {
				'mandatory': {
					'OfferToReceiveAudio': false,
					'OfferToReceiveVideo': true
				}
			};

			//----------------------交换信息 -----------------------

			function onOffer(evt) {
				console.log("接收到offer...")
				console.log(evt);
				setOffer(evt);
				sendAnswer(evt);
				peerStarted = true
			}

			function onAnswer(evt) {
				console.log("接收到Answer...")
				console.log(evt);
				setAnswer(evt);
			}

			function onCandidate(evt) {
				var candidate = new RTCIceCandidate({
					sdpMLineIndex: evt.sdpMLineIndex,
					sdpMid: evt.sdpMid,
					candidate: evt.candidate
				});
				console.log("接收到Candidate...")
				console.log(candidate);
				peerConnection.addIceCandidate(candidate);
			}

			function sendSDP(sdp) {
				var text = JSON.stringify(sdp);
				console.log('发送sdp.....')
				console.log(text); // "type":"offer"....
				// textForSendSDP.value = text;
				// 通过socket发送sdp
				socket.send(text)
			}

			function sendCandidate(candidate) {
				var text = JSON.stringify(candidate);
				console.log(text); // "type":"candidate","sdpMLineIndex":0,"sdpMid":"0","candidate":"....
				socket.send(text) // socket发送
			}

			//---------------------- 视频处理 -----------------------
			function startVideo() {
				navigator.webkitGetUserMedia({
						video: true,
						audio: true
					},
					function(stream) { //success
						localStream = stream;
						localVideo.srcObject = stream;
						//localVideo.src = window.URL.createObjectURL(stream);
						localVideo.play();
						localVideo.volume = 0;
					},
					function(error) { //error
						console.error('发生了一个错误: [错误代码：' + error.code + ']');
						return;
					});
			}

			function refreshPage() {
				location.reload();
			}

			//---------------------- 处理连接 -----------------------
			function prepareNewConnection() {
				var pc_config = {
					"iceServers": []
				};
				var peer = null;
				try {
					peer = new webkitRTCPeerConnection(pc_config);
				} catch (e) {
					console.log("建立连接失败，错误：" + e.message);
				}

				// 发送所有ICE候选者给对方
				peer.onicecandidate = function(evt) {
					if (evt.candidate) {
						console.log(evt.candidate);
						sendCandidate({
							type: "candidate",
							sdpMLineIndex: evt.candidate.sdpMLineIndex,
							sdpMid: evt.candidate.sdpMid,
							candidate: evt.candidate.candidate
						});
					}
				};
				console.log('添加本地视频流...');
				peer.addStream(localStream);

				peer.addEventListener("addstream", onRemoteStreamAdded, false);
				peer.addEventListener("removestream", onRemoteStreamRemoved, false);

				// 当接收到远程视频流时，使用本地video元素进行显示
				function onRemoteStreamAdded(event) {
					console.log("添加远程视频流");
					// remoteVideo.src = window.URL.createObjectURL(event.stream);
					remoteVideo.srcObject = event.stream;
				}

				// 当远程结束通信时，取消本地video元素中的显示
				function onRemoteStreamRemoved(event) {
					console.log("移除远程视频流");
					remoteVideo.src = "";
				}

				return peer;
			}

			function sendOffer() {
				peerConnection = prepareNewConnection();
				peerConnection.createOffer(function(sessionDescription) { //成功时调用
					peerConnection.setLocalDescription(sessionDescription);
					console.log("发送: SDP");
					console.log(sessionDescription);
					sendSDP(sessionDescription);
				}, function(err) { //失败时调用
					console.log("创建Offer失败");
				}, mediaConstraints);
			}

			function setOffer(evt) {
				if (peerConnection) {
					console.error('peerConnection已存在!');
					return;
				}
				peerConnection = prepareNewConnection();
				peerConnection.setRemoteDescription(new RTCSessionDescription(evt));
			}

			function sendAnswer(evt) {
				console.log('发送Answer,创建远程会话描述...');
				if (!peerConnection) {
					console.error('peerConnection不存在!');
					return;
				}

				peerConnection.createAnswer(function(sessionDescription) { //成功时
					peerConnection.setLocalDescription(sessionDescription);
					console.log("发送: SDP");
					console.log(sessionDescription);
					sendSDP(sessionDescription);
				}, function() { //失败时
					console.log("创建Answer失败");
				}, mediaConstraints);
			}

			function setAnswer(evt) {
				if (!peerConnection) {
					console.error('peerConnection不存在!');
					return;
				}
				peerConnection.setRemoteDescription(new RTCSessionDescription(evt));
			}

			//-------- 处理用户UI事件 -----
			// 开始建立连接
			function connect() {
				if (!localStream) {
					alert("请首先捕获本地视频数据.");
				} else if (peerStarted || !socketRead) {
					alert("请刷新页面后重试.");
				} else {
					sendOffer();
					peerStarted = true;
				}
			}

			// 停止连接
			function hangUp() {
				console.log("挂断.");
				stop();
			}

			function stop() {
				peerConnection.close();
				peerConnection = null;
				peerStarted = false;
			}
		</script>
	</body>
</html>

三、本地打开测试

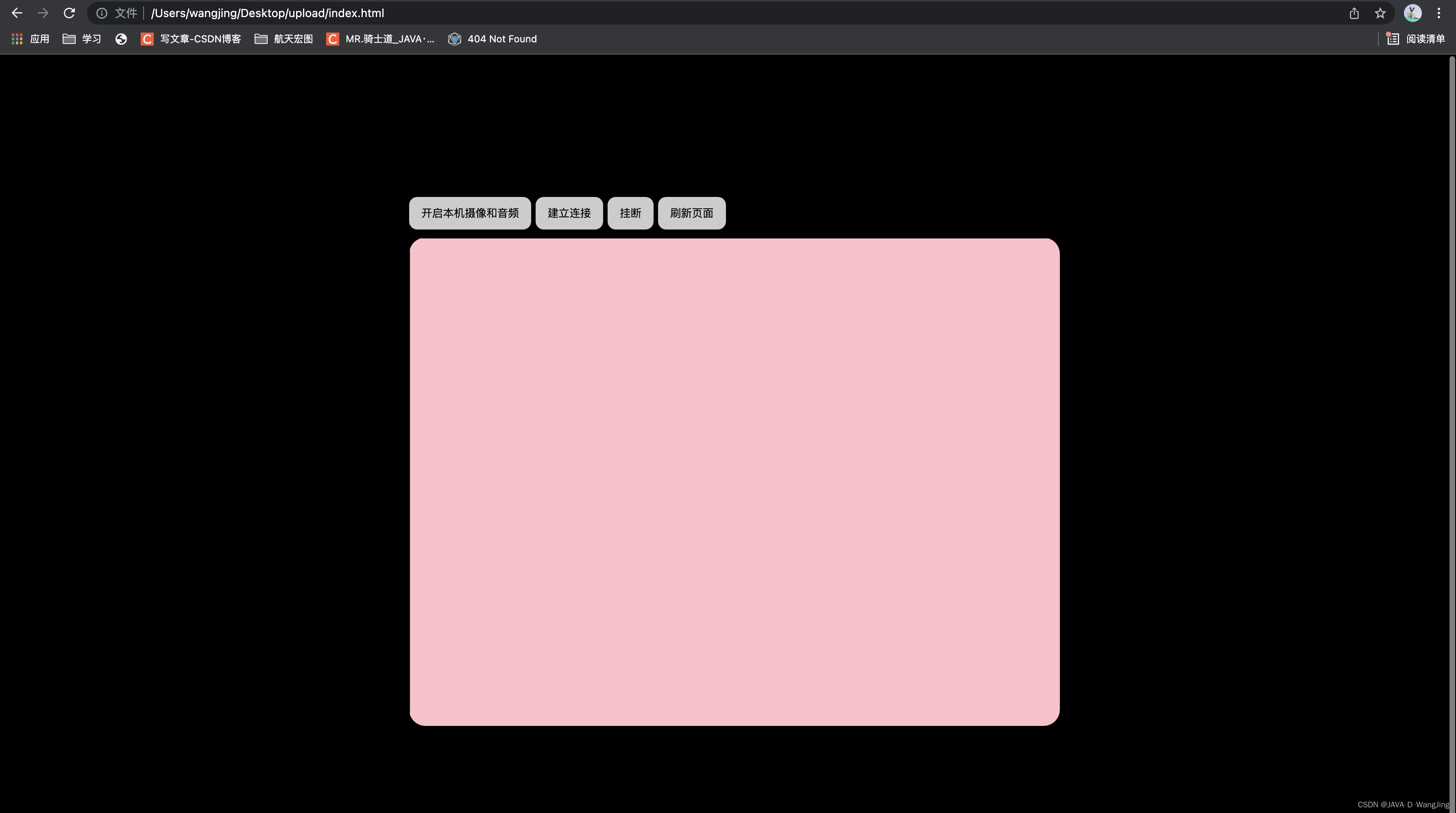

因为打开摄像头就露脸了，所以就初始化截个图吧

四、搭建STUN和TURN服务：传送门

五、更改 html 配置

                var pc_config = {
                    "iceServers": [{
                        url: "stun:ip:端口"
                    }, {
                        url: "turn:ip:端口",
                        credential: "kurento",
                        username: "kurento"
                    }]
                };

注：如果想要非局域网测试，需要把 STUN、TURN 和 websocket服务 要部署到公网环境，然后记得更改 html内的 websocket ip和端口

注：以上内容仅提供参考和交流，请勿用于商业用途，如有侵权联系本人删除！
