prometheus监控k8s集群
实现思路
pod性能：

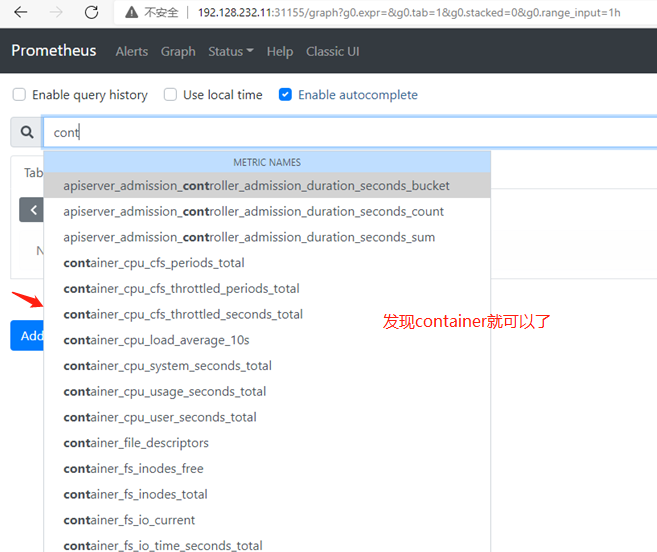

使用cadvisor进行实现，监控容器的CPU、内存利用率
Node性能：
使用node-exporter实现，主要监控节点CPU、内存利用率
K8S资源对象：

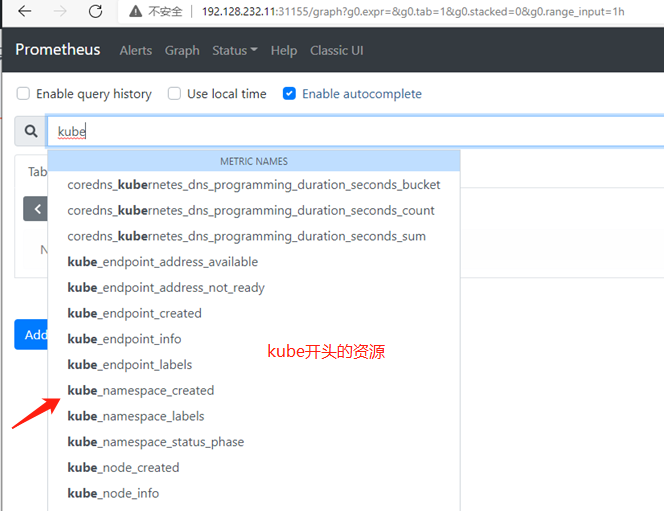

使用kube-state-metrics实现，主要用于监控pod、deployment、service
k8s基础环境准备
IP 角色
192.128.232.11 k8s-master,nfs
192.128.232.12 k8s-node1
192.128.232.13 k8s-node2
一.部署nfs作为prometheus存储，可以使用对象存储，
1.部署nfs服务
[root@nfs ~]# mkdir /data/prometheus
[root@nfs ~]# yum -y install nfs-utils
[root@nfs ~]# vim /etc/exports
/data/prometheus 192.128.232.0/24(rw,sync,no_root_squash)
[root@nfs ~]# systemctl restart nfs
[root@nfs ~]# systemctl enable nfs
[root@nfs ~]# showmount -e
[root@nfs ~]# chomd -R 777 /data/prometheus
2.获取prometheus yaml文件
[root@k8s-master ~]# git clone -b release-1.16 https://github.com/kubernetes/kubernetes.git
[root@k8s-master ~]# cd kubernetes/cluster/addons/prometheus/
#可以参考我的文件
链接：https://pan.baidu.com/s/1TQFxyBcD7luFHiEv2iZYbA
提取码：j295
3.prometheus部署
1.创建ns
[root@k8s-master prometheus]# kubectl create namespace prometheus
2.修改，将除了kube-state-metrics外的yaml中的namespace修改为prometheus
用vim打开输入以下命令
:%s/namespace: kube-system/namespace: prometheus/g
3.创建rbac资源
[root@master01 yaml]# cat prometheus-rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: prometheus
namespace: prometheus
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: prometheus
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
rules:
- apiGroups:
- ""
resources:
- nodes
- nodes/metrics
- services
- endpoints
- pods
verbs:
- get
- list
- watch
- apiGroups:
- ""
resources:
- configmaps
verbs:
- get
- nonResourceURLs:
- "/metrics"
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: prometheus
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: prometheus
namespace: prometheus
[root@master01 yaml]# kubectl apply -f prometheus-rbac.yaml
4.创建configmap资源
[root@master01 yaml]# cat prometheus-configmap.yaml
# Prometheus configuration format https://prometheus.io/docs/prometheus/latest/configuration/configuration/
apiVersion: v1
kind: ConfigMap
metadata:
name: prometheus-config
namespace: prometheus
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: EnsureExists
data:
prometheus.yml: |
global:
scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
rule_files: #prometheus配置告警规则
- "rules/*.yml"
scrape_configs:
- job_name: prometheus #监控prometheus本身
static_configs:
- targets:
- localhost:9090
- job_name: k8s-node #写要监控的node节点
static_configs:
- targets:
- 192.128.232.11:9100
- 192.128.232.12:9100
# kubernetes-apiservers自动发现，将apiserver的地址进行暴露并获取监控指标
- job_name: kubernetes-apiservers
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- action: keep
regex: default;kubernetes;https
source_labels:
- __meta_kubernetes_namespace
- __meta_kubernetes_service_name
- __meta_kubernetes_endpoint_port_name
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
- job_name: kubernetes-nodes-kubelet
kubernetes_sd_configs:
- role: node
relabel_configs:
- action: labelmap
regex: __meta_kubernetes_node_label_(.+)
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
# k8s的node节点自动发现，自动发现k8s中的所有node节点并进行监控
- job_name: kubernetes-nodes-cadvisor
kubernetes_sd_configs:
- role: node
relabel_configs:
- action: labelmap
regex: __meta_kubernetes_node_label_(.+)
- target_label: __metrics_path__
replacement: /metrics/cadvisor
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
# 发现endpoint的资源，主要是发现endpoint资源类型的pod，可以通过kubectl get ep查看谁是endpoint资源
- job_name: kubernetes-service-endpoints
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- action: keep
regex: true
source_labels:
- __meta_kubernetes_service_annotation_prometheus_io_scrape
- action: replace
regex: (https?)
source_labels:
- __meta_kubernetes_service_annotation_prometheus_io_scheme
target_label: __scheme__
- action: replace
regex: (.+)
source_labels:
- __meta_kubernetes_service_annotation_prometheus_io_path
target_label: __metrics_path__
- action: replace
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
source_labels:
- __address__
- __meta_kubernetes_service_annotation_prometheus_io_port
target_label: __address__
- action: labelmap
regex: __meta_kubernetes_service_label_(.+)
- action: replace
source_labels:
- __meta_kubernetes_namespace
target_label: kubernetes_namespace
- action: replace
source_labels:
- __meta_kubernetes_service_name
target_label: kubernetes_name
# 自动发现services资源
- job_name: kubernetes-services
kubernetes_sd_configs:
- role: service
metrics_path: /probe
params:
module:
- http_2xx
relabel_configs:
- action: keep
regex: true
source_labels:
- __meta_kubernetes_service_annotation_prometheus_io_probe
- source_labels:
- __address__
target_label: __param_target
- replacement: blackbox
target_label: __address__
- source_labels:
- __param_target
target_label: instance
- action: labelmap
regex: __meta_kubernetes_service_label_(.+)
- source_labels:
- __meta_kubernetes_namespace
target_label: kubernetes_namespace
- source_labels:
- __meta_kubernetes_service_name
target_label: kubernetes_name
#自动发现pod资源
- job_name: kubernetes-pods
kubernetes_sd_configs:
- role: pod
relabel_configs:
- action: keep
regex: true
source_labels:
- __meta_kubernetes_pod_annotation_prometheus_io_scrape
- action: replace
regex: (.+)
source_labels:
- __meta_kubernetes_pod_annotation_prometheus_io_path
target_label: __metrics_path__
- action: replace
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
source_labels:
- __address__
- __meta_kubernetes_pod_annotation_prometheus_io_port
target_label: __address__
- action: labelmap
regex: __meta_kubernetes_pod_label_(.+)
- action: replace
source_labels:
- __meta_kubernetes_namespace
target_label: kubernetes_namespace
- action: replace
source_labels:
- __meta_kubernetes_pod_name
target_label: kubernetes_pod_name
alerting: #这里是定义alertmanager告警的地址
alertmanagers:
- static_configs:
- targets:
- 192.128.232.11:30655
[root@k8s-master prometheus]# kubectl create -f prometheus-configmap.yaml
5.创建statefulset资源
github上的statefulset资源使用的是storageclasee动态创建pv，我这里为了方便就将
statefulset资源进行改造，使用静态pv做存储yaml中增加pv、pvc的配置，在将原来的storageclass配置项删除，
#在nfs服务上创建要挂载的目录，prometheus，grafana，aletermanager，rules都需要存储
[root@k8s-master prometheus]# mkdir -p /data/prometheus/{prometheus_data,grafana,alertmanager,rules}
[root@k8s-master prometheus]# chown -R 777 /data/prometheus
#创建prometheus的PV跟pvc
[root@master01 yaml]# cat prometheus-pv-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: prometheus-data
namespace: prometheus
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 16Gi
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv-prometheus
spec:
capacity:
storage: 16Gi
accessModes:
- ReadWriteOnce
nfs:
path: /data/prometheus/prometheus_data #要存储的目录
server: 192.128.232.11 #nfs服务地址
#创建grafana的PV跟pvc
[root@master01 yaml]# cat grafana_pv_pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: grafana-ui-data
namespace: prometheus
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 3Gi
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv-grafana-ui-data
namespace: prometheus
spec:
capacity:
storage: 3Gi
accessModes:
- ReadWriteOnce
nfs:
path: /data/prometheus/grafana
server: 192.128.232.11
[root@master01 yaml]# cat alertmanager-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: alertmanager-data
namespace: prometheus
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: EnsureExists
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: "2Gi"
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv-alertmanager-data
namespace: prometheus
spec:
capacity:
storage: 2Gi
accessModes:
- ReadWriteOnce
nfs:
path: /data/prometheus/alertmanager
server: 192.128.232.11 #创建rules规则存储的pv跟pvc
[root@master01 yaml]# cat prometheus-rules-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: prometheus-rules
namespace: prometheus
labels:
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: "2Gi"
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv-prometheus-rules
spec:
capacity:
storage: 2Gi
accessModes:
- ReadWriteOnce
nfs:
path: /data/prometheus/rules
server: 192.128.232.11
#创建alertmanager，prometheus，grafana，rules的PV跟pvc
[root@k8s-master prometheus]# kubectl create -f prometheus-pv-pvc.yaml
[root@k8s-master prometheus]# kubectl create -f grafana_pv_pvc.yaml
[root@k8s-master prometheus]# kubectl create -f alertmanager-pvc.yaml
[root@k8s-master prometheus]# kubectl create -f prometheus-rules-pvc.yaml
#查看创建的pv跟pvc
[root@master01 yaml]# kubectl get pv,pvc -n prometheus
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
persistentvolume/pv-alertmanager-data 2Gi RWO Retain Bound prometheus/alertmanager-data 19h
persistentvolume/pv-grafana-ui-data 3Gi RWO Retain Bound prometheus/grafana-ui-data 44h
persistentvolume/pv-prometheus 16Gi RWO Retain Bound prometheus/prometheus-data 15h
persistentvolume/pv-prometheus-rules 2Gi RWO Retain Bound prometheus/prometheus-rules 18h
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/alertmanager-data Bound pv-alertmanager-data 2Gi RWO 19h
persistentvolumeclaim/grafana-ui-data Bound pv-grafana-ui-data 3Gi RWO 44h
persistentvolumeclaim/prometheus-data Bound pv-prometheus 16Gi RWO 15h
persistentvolumeclaim/prometheus-rules Bound pv-prometheus-rules 2Gi RWO 18h#创建prometheus服务
[root@k8s-master prometheus]# cat prometheus-statefulset.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: prometheus-data
namespace: prometheus
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 16Gi
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv-prometheus
spec:
capacity:
storage: 16Gi
accessModes:
- ReadWriteOnce
nfs:
path: /data/prometheus/prometheus_data
server: 192.128.232.11
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: prometheus
namespace: prometheus
labels:
k8s-app: prometheus
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
version: v2.2.1
spec:
serviceName: "prometheus"
replicas: 1
podManagementPolicy: "Parallel"
updateStrategy:
type: "RollingUpdate"
selector:
matchLabels:
k8s-app: prometheus
template:
metadata:
labels:
k8s-app: prometheus
spec:
priorityClassName: system-cluster-critical
serviceAccountName: prometheus
initContainers:
- name: "init-chown-data"
image: "busybox:latest"
imagePullPolicy: "IfNotPresent"
command: ["chown", "-R", "65534:65534", "/data"]
volumeMounts:
- name: prometheus-data
mountPath: /data
subPath: ""
containers:
- name: prometheus-server-configmap-reload
image: "jimmidyson/configmap-reload:v0.1"
imagePullPolicy: "IfNotPresent"
args:
- --volume-dir=/etc/config
- --webhook-url=http://localhost:9090/-/reload
volumeMounts:
- name: config-volume
mountPath: /etc/config
readOnly: true
resources:
limits:
cpu: 10m
memory: 10Mi
requests:
cpu: 10m
memory: 10Mi
- name: prometheus-server
image: "prom/prometheus:v2.23.0"
imagePullPolicy: "IfNotPresent"
args:
- --config.file=/etc/config/prometheus.yml
- --storage.tsdb.path=/data
- --web.console.libraries=/etc/prometheus/console_libraries
- --web.console.templates=/etc/prometheus/consoles
- --web.enable-lifecycle
ports:
- containerPort: 9090
readinessProbe:
httpGet:
path: /-/ready
port: 9090
initialDelaySeconds: 30
timeoutSeconds: 30
livenessProbe:
httpGet:
path: /-/healthy
port: 9090
initialDelaySeconds: 30
timeoutSeconds: 30
# based on 10 running nodes with 30 pods each
resources:
limits:
cpu: 200m
memory: 1000Mi
requests:
cpu: 200m
memory: 1000Mi
volumeMounts:
- name: prometheus-rules
mountPath: /etc/config/rules
- name: config-volume
mountPath: /etc/config
- name: prometheus-data
mountPath: /data
subPath: ""
terminationGracePeriodSeconds: 300
volumes:
- name: config-volume
configMap:
name: prometheus-config
- name: prometheus-data
persistentVolumeClaim:
claimName: prometheus-data
- name: prometheus-rules
persistentVolumeClaim:
claimName: prometheus-rules#创建prometheus的services资源
[root@master01 yaml]# cat prometheus-service.yaml
kind: Service
apiVersion: v1
metadata:
name: prometheus
namespace: prometheus
labels:
kubernetes.io/name: "Prometheus"
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
spec:
type: NodePort
ports:
- name: http
port: 9090
protocol: TCP
targetPort: 9090
selector:
k8s-app: prometheus
#查看创建prometheus的pod，svc资源并且查看
[root@k8s-master prometheus]# kubectl apply -f prometheus-statefulset.yaml
[root@k8s-master prometheus]# kubectl apply -f prometheus-service.yaml
[root@k8s-master prometheus]# kubectl get pod,svc -n prometheus|grep prometheus
pod/prometheus-0 2/2 Running 0 15h
service/prometheus NodePort 10.108.210.68 <none> 9090:31155/TCP 45h#验证metrics是否在prometheus有数据，只要能在prometheus搜索到container数据就可以，访问prometheus服务：http://192.128.232.11:31155
图
6.k8s使用kube-state-metrics-监控资源状态
#这里名称空间不用改，就在kube-system就可以了
6.1：定义kube-state-metrics的权限
[root@master01 yaml]# cat kube-state-metrics-rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: kube-state-metrics
namespace: kube-system
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: kube-state-metrics
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
rules:
- apiGroups: [""]
resources:
- configmaps
- secrets
- nodes
- pods
- services
- resourcequotas
- replicationcontrollers
- limitranges
- persistentvolumeclaims
- persistentvolumes
- namespaces
- endpoints
verbs: ["list", "watch"]
- apiGroups: ["extensions","apps"]
resources:
- daemonsets
- deployments
- replicasets
verbs: ["list", "watch"]
- apiGroups: ["apps"]
resources:
- statefulsets
verbs: ["list", "watch"]
- apiGroups: ["batch"]
resources:
- cronjobs
- jobs
verbs: ["list", "watch"]
- apiGroups: ["autoscaling"]
resources:
- horizontalpodautoscalers
verbs: ["list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: kube-state-metrics-resizer
namespace: kube-system
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
rules:
- apiGroups: [""]
resources:
- pods
verbs: ["get"]
- apiGroups: ["extensions","apps"]
resources:
- deployments
resourceNames: ["kube-state-metrics"]
verbs: ["get", "update"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: kube-state-metrics
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: kube-state-metrics
subjects:
- kind: ServiceAccount
name: kube-state-metrics
namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: kube-state-metrics
namespace: kube-system
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: kube-state-metrics-resizer
subjects:
- kind: ServiceAccount
name: kube-state-metrics
namespace: kube-system#部署kube-state-metrics-deployment
[root@master01 yaml]# cat kube-state-metrics-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: kube-state-metrics
namespace: kube-system
labels:
k8s-app: kube-state-metrics
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
spec:
selector:
matchLabels:
k8s-app: kube-state-metrics
replicas: 1
template:
metadata:
labels:
k8s-app: kube-state-metrics
spec:
priorityClassName: system-cluster-critical
serviceAccountName: kube-state-metrics
containers:
- name: kube-state-metrics
image: kube-state-metrics:v1.8.0
ports:
- name: http-metrics
containerPort: 8080
- name: telemetry
containerPort: 8081
readinessProbe:
httpGet:
path: /healthz
port: 8080
initialDelaySeconds: 5
timeoutSeconds: 5
- name: addon-resizer
image: addon-resizer:1.8.6
resources:
limits:
cpu: 100m
memory: 30Mi
requests:
cpu: 100m
memory: 30Mi
env:
- name: MY_POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: MY_POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: config-volume
mountPath: /etc/config
command:
- /pod_nanny
- --config-dir=/etc/config
- --container=kube-state-metrics
- --cpu=100m
- --extra-cpu=1m
- --memory=100Mi
- --extra-memory=2Mi
- --threshold=5
- --deployment=kube-state-metrics
volumes:
- name: config-volume
configMap:
name: kube-state-metrics-config
---
# Config map for resource configuration.
apiVersion: v1
kind: ConfigMap
metadata:
name: kube-state-metrics-config
namespace: kube-system
labels:
k8s-app: kube-state-metrics
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
data:
NannyConfiguration: |-
apiVersion: nannyconfig/v1alpha1
kind: NannyConfiguration
#kube-state-metrics的服务
[root@k8s-master prometheus]# cat kube-state-metrics-service.yaml
apiVersion: v1
kind: Service
metadata:
name: kube-state-metrics
namespace: kube-system
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
kubernetes.io/name: "kube-state-metrics"
annotations:
prometheus.io/scrape: 'true'
spec:
ports:
- name: http-metrics
port: 8080
targetPort: http-metrics
protocol: TCP
- name: telemetry
port: 8081
targetPort: telemetry
protocol: TCP
selector:
k8s-app: kube-state-metrics#创建kube-state-metrics
[root@k8s-master prometheus]# kubectl create -f kube-state-metrics-rbac.yaml
[root@k8s-master prometheus]# kubectl create -f kube-state-metrics-deployment.yaml
[root@k8s-master prometheus]# kubectl create -f kube-state-metrics-service.yaml
[root@k8s-master prometheus]# kubectl get all -n kube-system | grep kube-state
[root@k8s-master prometheus]# kubectl get all -n kube-system | grep kube-state
pod/kube-state-metrics-8996fd97b-6h7tr 2/2 Running 0 116m
service/kube-state-metrics ClusterIP 10.104.30.105 <none> 8080/TCP,8081/TCP 47h
deployment.apps/kube-state-metrics 1/1 1 1 116m
replicaset.apps/kube-state-metrics-8996fd97b 1 1 1 116m
#.在prometheus查看是否获取监控指标
安装完kube-state-metrics之后，直接就可以在prometheus上查询监控指标，都是以kube开头的
资源状态监控：6417
#安装监控k8s node节点，每个节点都安装，如果节点过多，可以使用yml文件安装
[root@k8s-master prometheus]# cat install_node_exportes.sh
#!/bin/bash
#批量安装node_exporter
soft_dir=/root/soft
if [ ! -e $soft_dir ];then
mkdir $soft_dir
fi
netstat -lnpt | grep 9100
if [ $? -eq 0 ];then
use=`netstat -lnpt | grep 9100 | awk -F/ '{print $NF}'`
echo "9100端口已经被占用，占用者是 $use"
exit 1
fi
cd $soft_dir
wget https://github.com/prometheus/node_exporter/releases/download/v1.0.1/node_exporter-1.0.1.linux-amd64.tar.gz
tar xf node_exporter-1.0.1.linux-amd64.tar.gz
mv node_exporter-1.0.1.linux-amd64 /usr/local/node_exporter
cat <<EOF >/usr/lib/systemd/system/node_exporter.service
[Unit]
Description=https://prometheus.io
[Service]
Restart=on-failure
ExecStart=/usr/local/node_exporter/node_exporter --collector.systemd --collector.systemd.unit-whitelist=(docker|kubelet|node_exporter).service
[Install]
WantedBy=multi-user.target
EOF
systemctl daemon-reload
systemctl enable node_exporter
systemctl restart node_exporter
netstat -lnpt | grep 9100
if [ $? -eq 0 ];then
echo "node_eporter install finish..."
fi#执行脚本
[root@k8s-master prometheus]# chmod +x install_node_exportes.sh && ./install_node_exportes.sh
#查看node是否安装成功
[root@k8s-node1 ~]# netstat -lnpt | grep 9100
在prometheus的配置文件里prometheus-configmap.yaml 指定node
[root@k8s-master prometheus]# vim prometheus-configmap.yaml
- job_name: k8s-node
static_configs:
- targets:
- 192.128.232.11:9100
- 192.128.232.12:9100# 更新完配置，prometheus页面会立马显示，因此每当configmap一修改，prometheus容器就会重载
[root@k8s-master prometheus]# kubectl apply -f prometheus-configmap.yaml

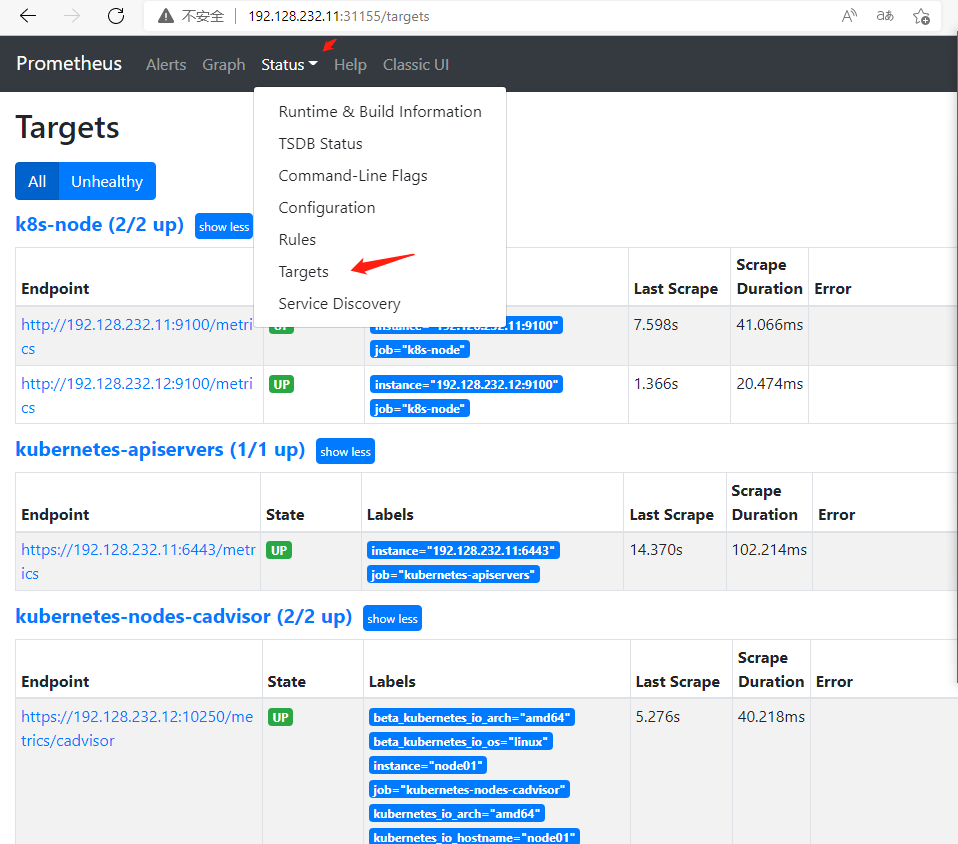

#查看prometheus的
node监控：9276
7.在k8s中部署grafana
1.编写granfana-pv-pvc资源，前面创建了。创建grafana的sa账号，
[root@master01 yaml]# cat grafana-rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: grafana
namespace: prometheus
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: grafana
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
rules:
- apiGroups:
- ""
resources:
- nodes
- nodes/metrics
- services
- endpoints
- pods
verbs:
- get
- list
- watch
- apiGroups:
- ""
resources:
- configmaps
verbs:
- get
- nonResourceURLs:
- "/metrics"
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: grafana
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: grafana
namespace: prometheus#部署grafana
[root@master01 yaml]# cat grafana_statefulset.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: grafana-ui
namespace: prometheus
spec:
serviceName: "grafana"
replicas: 1
selector:
matchLabels:
app: grafana-ui
template:
metadata:
labels:
app: grafana-ui
spec:
containers:
- name: grafana-ui
image: grafana/grafana:6.6.2
imagePullPolicy: "IfNotPresent"
ports:
- containerPort: 3000
protocol: TCP
resources:
limits:
cpu: 100m
memory: 256Mi
requests:
cpu: 100m
memory: 256Mi
volumeMounts:
- name: grafana-ui-data
mountPath: /var/lib/grafana
subPath: ""
securityContext:
fsGroup: 472
runAsUser: 472
volumes:
- name: grafana-ui-data
persistentVolumeClaim:
claimName: grafana-ui-data #前面创建的pvc
#创建grafana的services
[root@master01 yaml]# cat grafana_svc.yaml
apiVersion: v1
kind: Service
metadata:
name: grafana-ui
namespace: prometheus
spec:
type: NodePort
ports:
- name: http
port: 3000
protocol: TCP
targetPort: 3000
selector:
app: grafana-ui
3.创建grafana
[root@k8s-master prometheus]# kubectl create -f grafana-rbac.yaml
[root@k8s-master prometheus]# kubectl create -f grafana_statefulset.yaml
[root@k8s-master prometheus]# kubectl create -f grafana_svc.yaml
4.查看grafana的资源
[root@master01 yaml]# kubectl get pv,pvc,pod,statefulset,svc -n prometheus|grep grafana
[root@master01 yaml]# kubectl get pv,pvc,pod,statefulset,svc -n prometheus|grep grafana
persistentvolume/pv-grafana-ui-data 3Gi RWO Retain Bound prometheus/grafana-ui-data 6h59m
persistentvolumeclaim/grafana-ui-data Bound pv-grafana-ui-data 3Gi RWO 6h59m
pod/grafana-ui-0 1/1 Running 0 6h2m
statefulset.apps/grafana-ui 1/1 6h2m
service/grafana-ui NodePort 10.102.113.28 <none> 3000:30381/TCP 2d4h

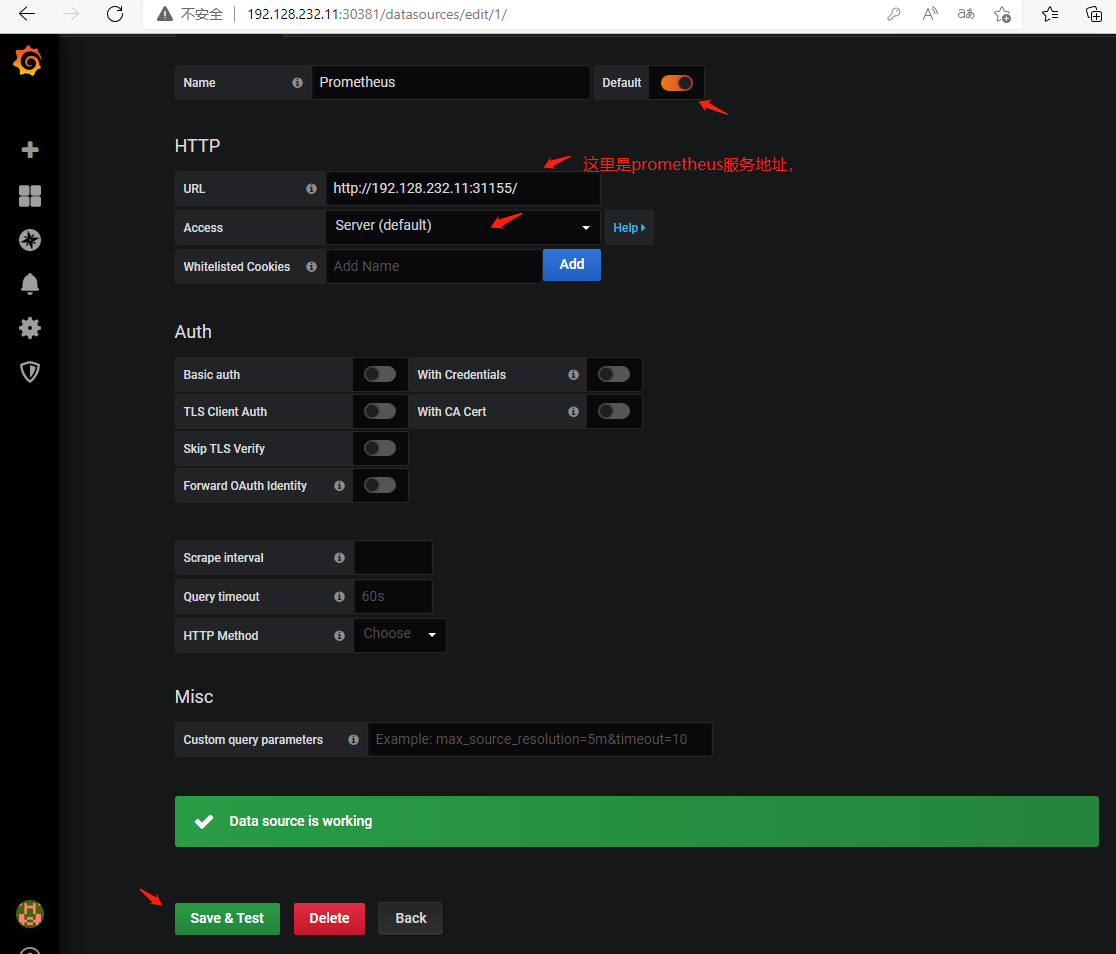

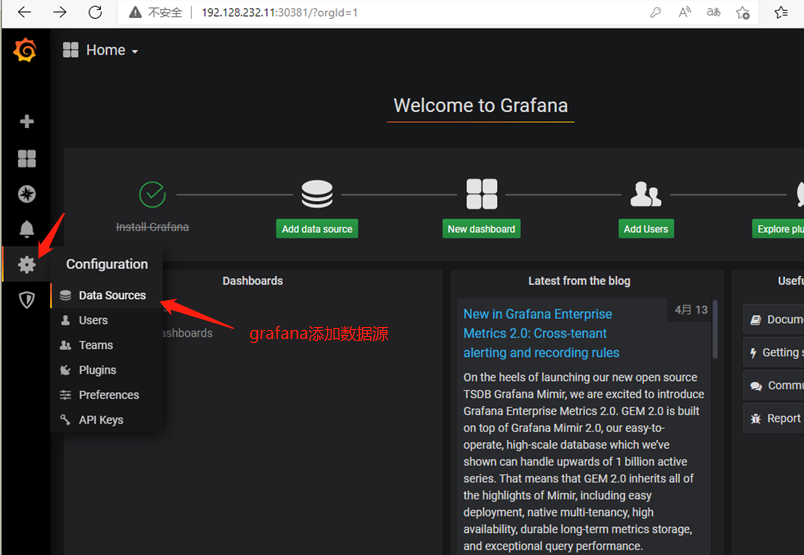

5.登陆grafana，默认账号跟密码都是：admin，并且添加prometheus数据源

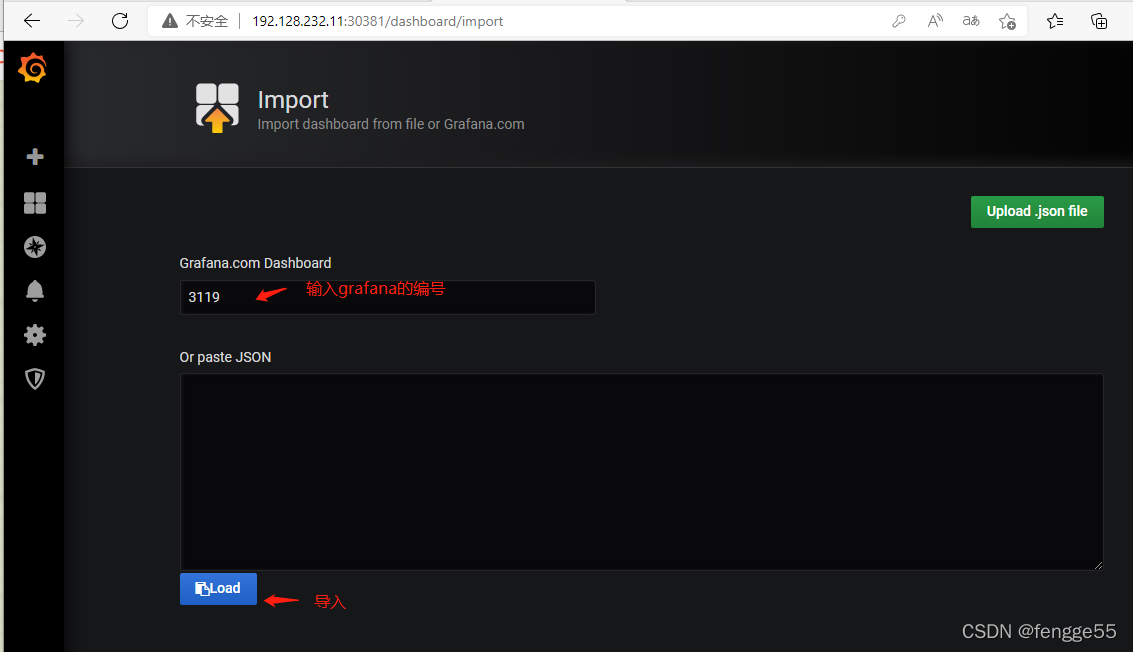

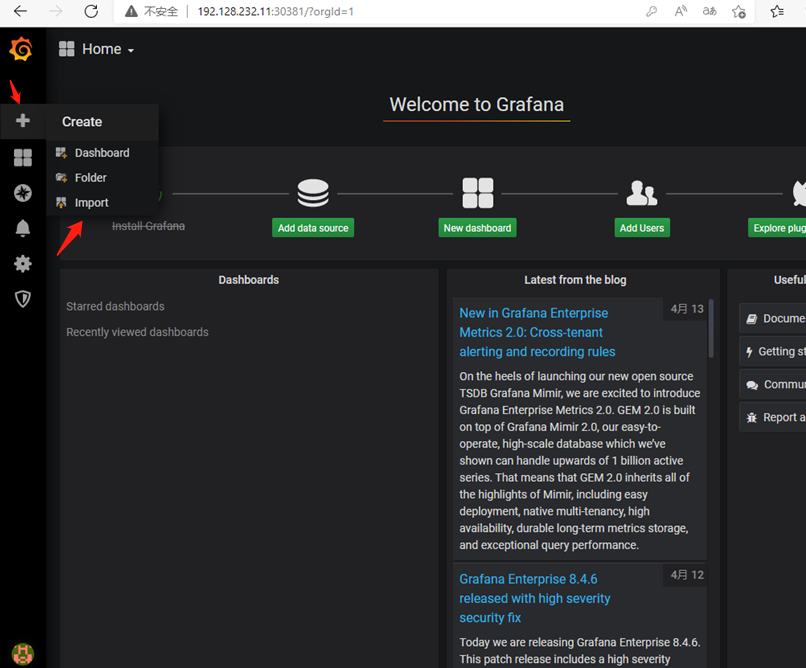

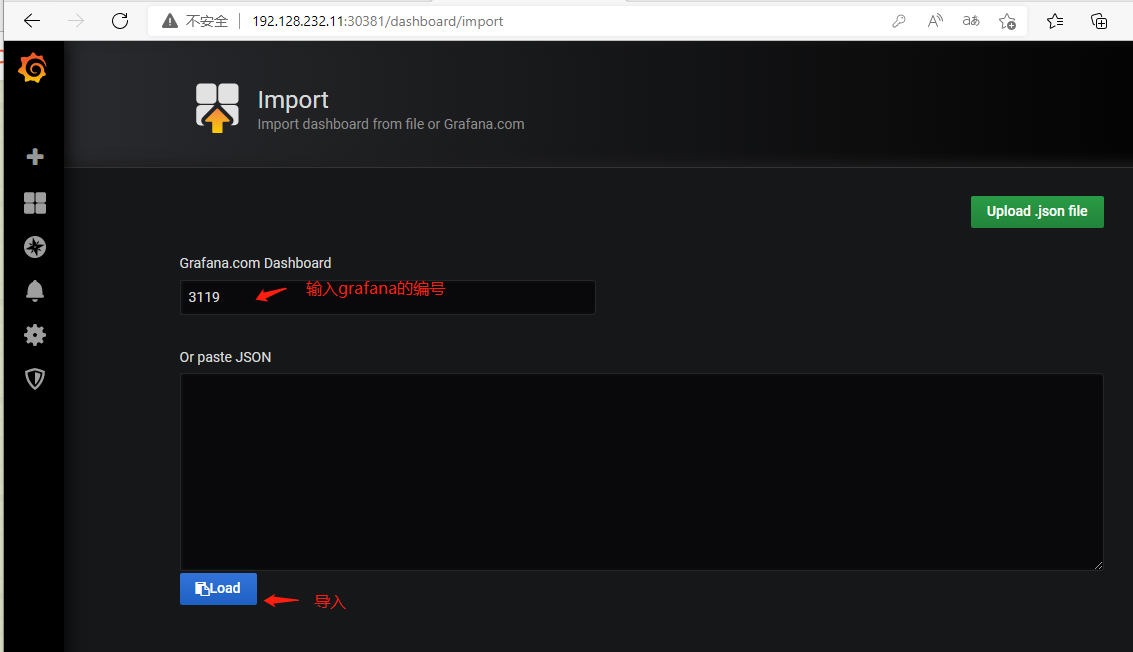

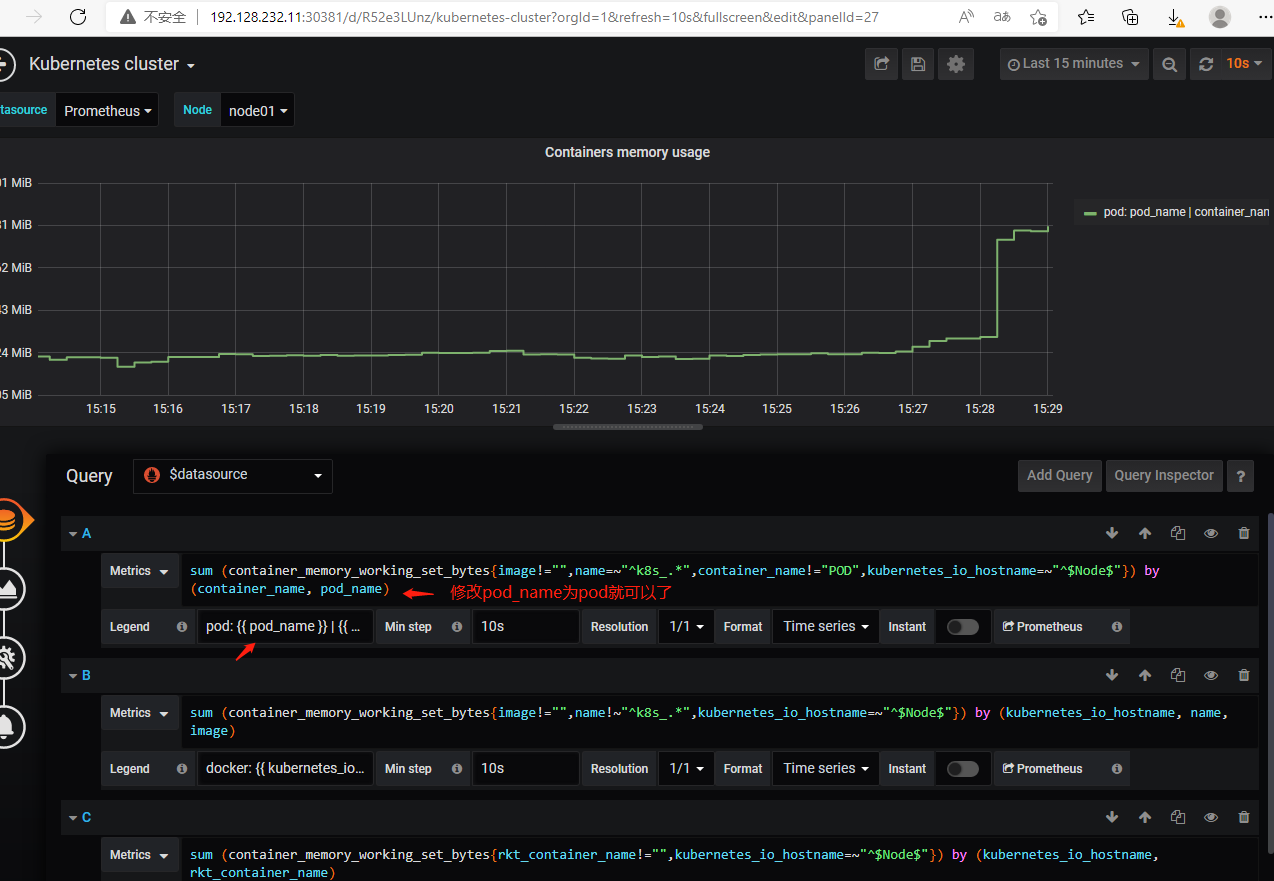

导入k8s资源监控pod资源模板
推荐模板：
集群资源监控：3119
资源状态监控：6417
node监控：9276
8 企业ID获取
首先访问企业微信官网：https://work.weixin.qq.com/
注册一个企业，当前是谁都可以注册，没有任何限制，也不需要企业认证，注册即可。

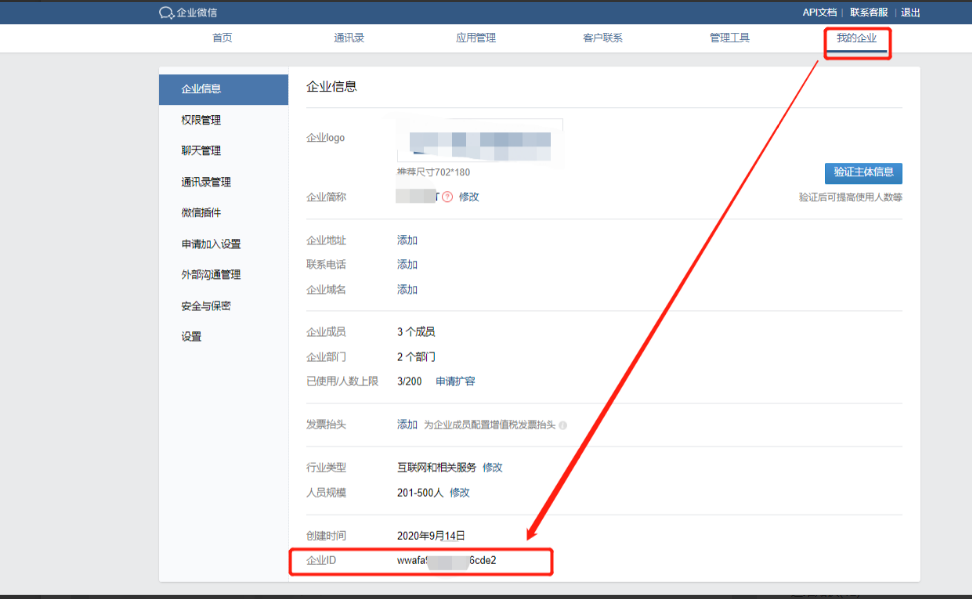

注册完成之后，登录后台管理，在【我的企业】这里，先拿到后面用到的第一个配置：企业ID
8.2 部门ID获取

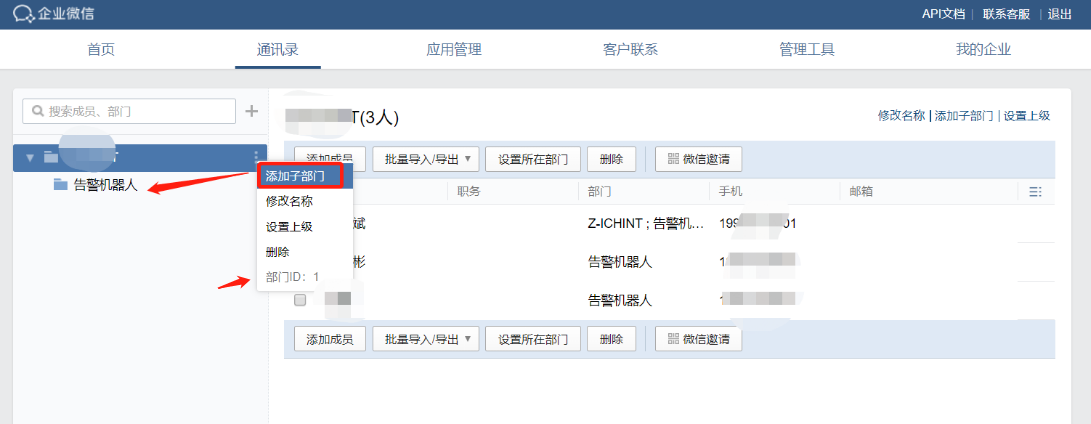

然后在通讯录中，添加一个子部门，用于接收告警信息，后面把人加到该部门，这个人就能接收到告警信息了。

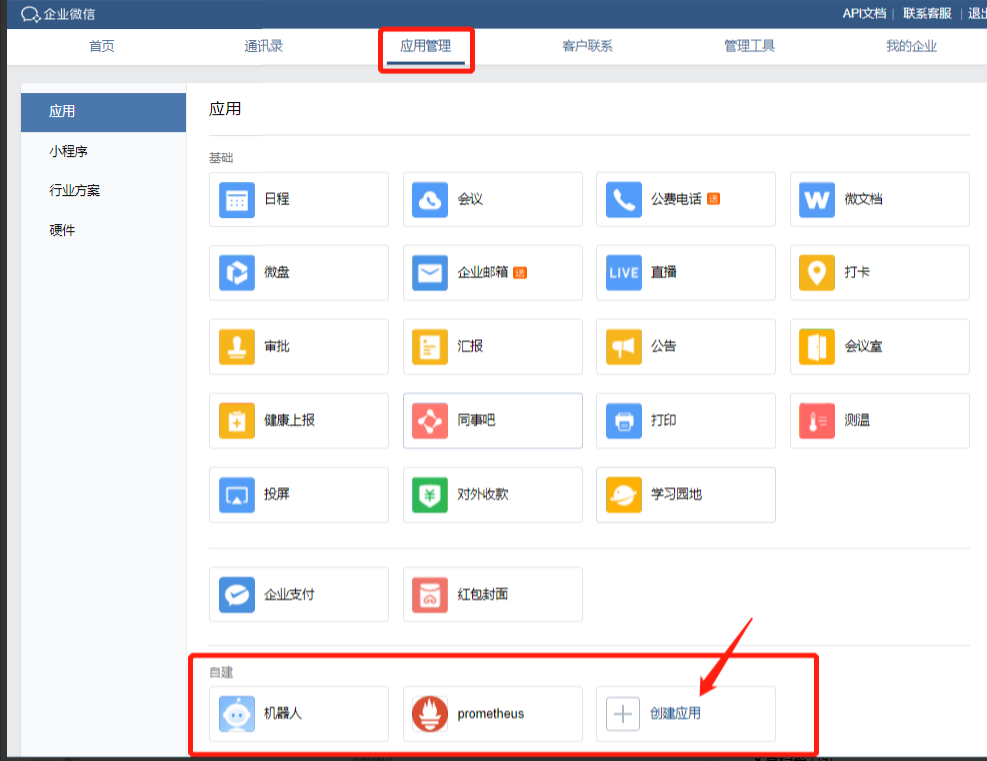

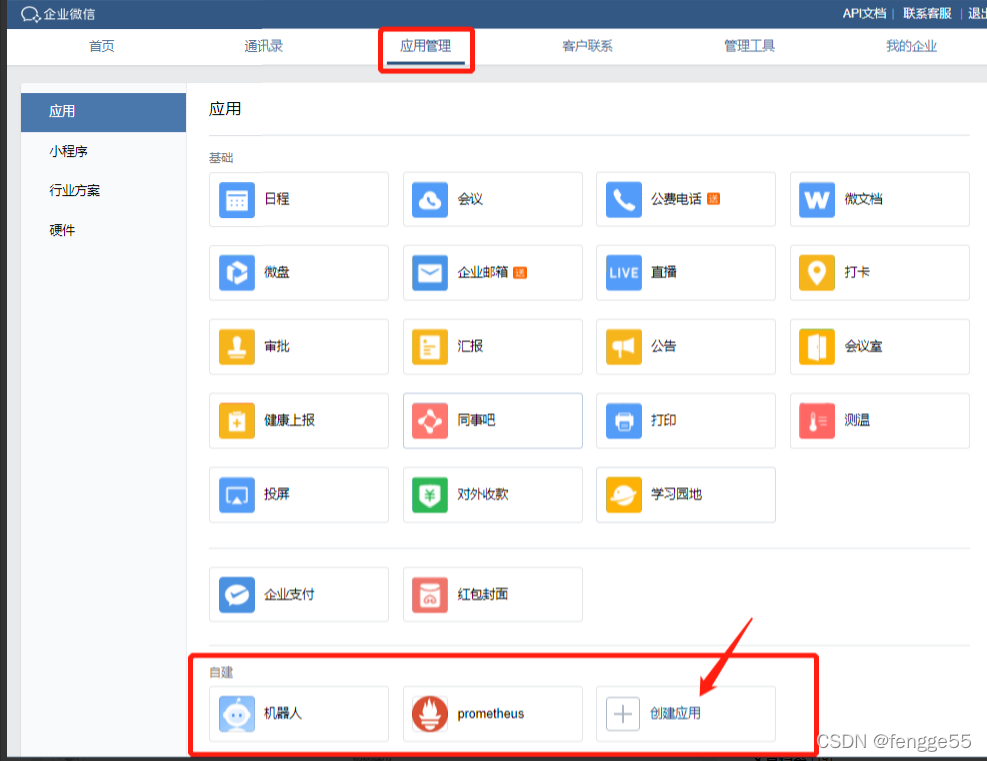

8.3 告警AgentId和Secret获取，如果没有创建应用管理，要先创建
告警AgentId和Secret获取是需要在企业微信后台，【应用管理】中，自建应用才能够获得的。

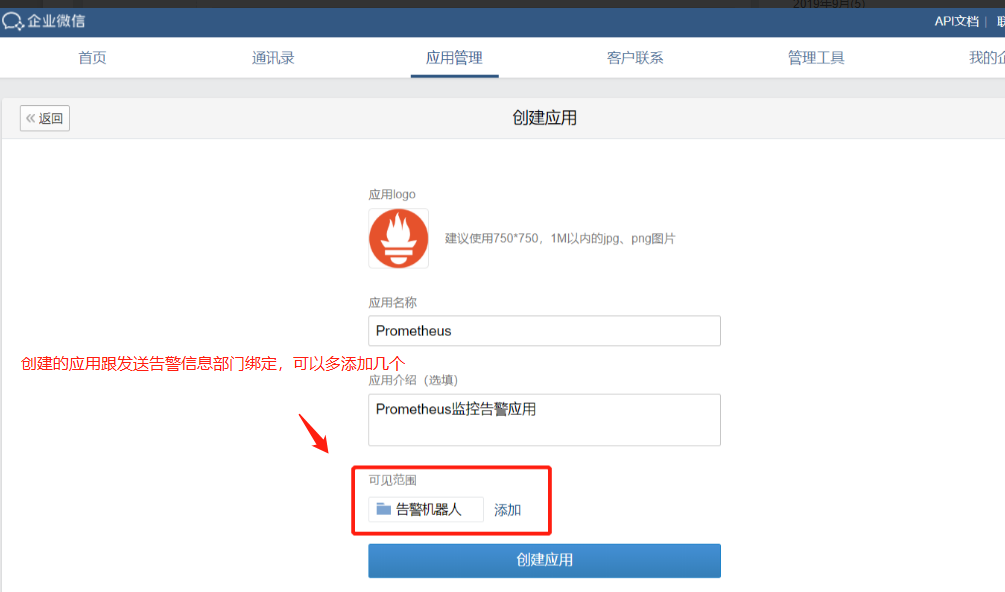

8.4：打开应用，可见范围添加要发送告警信息的部门，

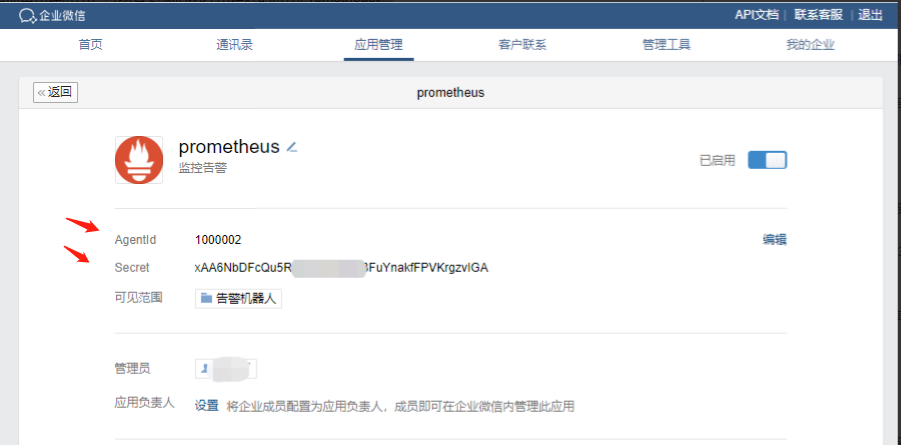

8.5：创建应用管理后，获取告警AgentId和Secret获取，要绑定
以上步骤完成后，我们就得到了配置Alertmanager的所有信息，包括：企业ID，AgentId，Secret和接收告警的部门id
9.在k8s中部署alertmanager实现告警系统
1.alertmanager的配置文件cm
[root@master01 yaml]# cat alertmanager-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: alertmanager-config
namespace: prometheus
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: EnsureExists
data:
alertmanager.yml: | #通过cm来创建alertmanager配置文件内容
global:
resolve_timeout: 1m
receivers:
- name: 'wechat' #定义接收者名字
wechat_configs:
- corp_id: '6ww5c39491d0f1779dd2' # 企业微信唯一ID，我的企业--企业信息
to_party: '1' # 企业微信中创建的接收告警的部门【告警机器人】的部门ID
agent_id: '1000003' # 企业微信中创建的应用的ID
api_secret: '1r3UpV2fvva2p7Cf3bgaRTtNXYjuAaVRtnEMiPDGc96Q281' # 企业微信中，应用的Secret
send_resolved: true
message: '{{ template "wechat.default.message" . }}'
route:
group_interval: 1m
group_by: ['env','instance','type','group','job','alertname']
group_wait: 10s
receiver: wechat #发送接收者名字为: "wechat"
repeat_interval: 1m
templates: #定义模板位置
- '*.tmpl'
#微信发送告警信息的模板文件
wechat.tmpl: |
{{ define "wechat.default.message" }}
{{- if gt (len .Alerts.Firing) 0 -}}
{{- range $index, $alert := .Alerts -}}
{{- if eq $index 0 }}
========= 监控报警 =========
告警状态：{{ .Status }}
告警级别：{{ .Labels.severity }}
告警类型：{{ $alert.Labels.alertname }}
故障主机: {{ $alert.Labels.instance }}
告警主题: {{ $alert.Annotations.summary }}
告警详情: {{ $alert.Annotations.message }}{{ $alert.Annotations.description}};
触发阀值：{{ .Annotations.value }}
故障时间: {{ ($alert.StartsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}
========= = end = =========
{{- end }}
{{- end }}
{{- end }}
{{- if gt (len .Alerts.Resolved) 0 -}}
{{- range $index, $alert := .Alerts -}}
{{- if eq $index 0 }}
========= 告警恢复 =========
告警类型：{{ .Labels.alertname }}
告警状态：{{ .Status }}
告警主题: {{ $alert.Annotations.summary }}
告警详情: {{ $alert.Annotations.message }}{{ $alert.Annotations.description}};
故障时间: {{ ($alert.StartsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}
恢复时间: {{ ($alert.EndsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}
{{- if gt (len $alert.Labels.instance) 0 }}
实例信息: {{ $alert.Labels.instance }}
{{- end }}
========= = end = =========
{{- end }}
{{- end }}
{{- end }}
{{- end }}
9.2。创建alertmanager-deployment资源
[root@master01 yaml]# cat alertmanager-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: alertmanager
namespace: prometheus
labels:
k8s-app: alertmanager
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
version: v0.14.0
spec:
replicas: 1
selector:
matchLabels:
k8s-app: alertmanager
version: v0.14.0
template:
metadata:
labels:
k8s-app: alertmanager
version: v0.14.0
spec:
priorityClassName: system-cluster-critical
containers:
- name: prometheus-alertmanager
image: "prom/alertmanager:v0.14.0"
imagePullPolicy: "IfNotPresent"
args:
- --config.file=/etc/config/alertmanager.yml
- --storage.path=/data
- --web.external-url=/
ports:
- containerPort: 9093
readinessProbe:
httpGet:
path: /#/status
port: 9093
initialDelaySeconds: 30
timeoutSeconds: 30
volumeMounts:
- name: config-volume
mountPath: /etc/config
- name: alertmanager-data
mountPath: "/data"
subPath: ""
resources:
limits:
cpu: 10m
memory: 50Mi
requests:
cpu: 10m
memory: 50Mi
- name: prometheus-alertmanager-configmap-reload
image: "jimmidyson/configmap-reload:v0.1"
imagePullPolicy: "IfNotPresent"
args:
- --volume-dir=/etc/config
- --webhook-url=http://localhost:9093/-/reload
volumeMounts:
- name: config-volume
mountPath: /etc/config
readOnly: true
resources:
limits:
cpu: 10m
memory: 10Mi
requests:
cpu: 10m
memory: 10Mi
volumes:
- name: config-volume
configMap:
name: alertmanager-config
- name: alertmanager-data
persistentVolumeClaim:
claimName: alertmanager-data
9.3：创建alertmanager-service资源
[root@master01 yaml]# cat alertmanager-service.yaml
apiVersion: v1
kind: Service
metadata:
name: alertmanager
namespace: prometheus
labels:
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
kubernetes.io/name: "Alertmanager"
spec:
type: NodePort
ports:
- name: http
port: 9093
protocol: TCP
targetPort: 9093
selector:
k8s-app: alertmanager
#创建alertmanager-config资源
[root@k8s-master ~/k8s/prometheus3]# kubectl create -f alertmanager-configmap.yaml
.创建alertmanager-deployment资源
[root@k8s-master ~/k8s/prometheus3]# kubectl create -f alertmanager-deployment.yaml
创建alertmanager-service资源
[root@k8s-master ~/k8s/prometheus3]# kubectl create -f alertmanager-service.yaml
#查看alertmanager所有资源
[root@master01 yaml]# kubectl get all,pv,pvc,cm -n prometheus|grep alertmanager
10.访问alertmanager
10.1：配置文件已经支持微信报警
11：配置alertmanager实现k8s告警系统
.1.在NFS上准备两个告警规则文件
我们对于告警规则文件不采用configmap的方式而是采用pv、pvc的方式把告警规则挂载到容器里
1.在nfs上创建pv存储路径，前面创建了rules的pvc
[root@nfs ~]# cd /data/prometheus/rules
[root@master01 rules]# cat node.yml
groups:
- name: node_health
rules:
- alert: HighMemoryUsage
expr: node_memory_MemAvailable_bytes / node_memory_MemTotal_bytes < 0.9
for: 1m
labels:
severity: warning
annotations:
summary: "Instance {{ $labels.instance }}"
description: "Instance {{ $labels.instance }} of job {{ $labels.job }} has High Memory."
- alert: HighDiskUsage
expr: node_filesystem_free_bytes{mountpoint='/'} / node_filesystem_size_bytes{mountpoint='/'} < 0.71
for: 1m
labels:
severity: warning
annotations:
summary: "Instance {{ $labels.instance }}"
description: "Instance {{ $labels.instance }} of job {{ $labels.job }} has High Disk."
- alert: NodeCPUUsage
expr: 100 - (avg(irate(node_cpu_seconds_total{mode="idle"}[5m])) by (instance) * 100) > 60
for: 1m
labels:
severity: warning
annotations:
summary: "Instance {{ $labels.instance }} CPU使用率过高"
description: "{{ $labels.instance }} CPU使用大于60% (当前值: {{ $value }})"
[root@master01 rules]# cat node_status.yml
groups:
- name: 实例存活告警规则
rules:
- alert: 实例存活告警
expr: up == 0
for: 1m
labels:
user: prometheus
severity: error
annotations:
summary: "Instance {{ $labels.instance }} is down"
description: "Instance {{ $labels.instance }} of job {{ $labels.job }} has been down for more than 1 minutes."
value: "{{ $value }}"
[root@master01 rules]# ll
总用量 8
-rw-r--r-- 1 root root 386 4月 13 19:37 node_status.yml
-rw-r--r-- 1 777 root 687 4月 13 19:58 node.yml
[root@master01 rules]# chmod -R 777 /data/prometheus
.修改prometheus-configmap资源配置alertmanager地址
1.修改配置增加alertmanager地址
[root@k8s-master prometheus]# vim prometheus-configmap.yaml
alerting:
alertmanagers:
- static_configs:
- targets:
- 192.128.232.11:306552.更新资源
[root@k8s-master prometheus]# kubectl apply -f prometheus-configmap.yaml
3.加载prometheus服务配置
[root@master01 yaml]# curl -X POST http://192.128.232.11:31155/-/reload

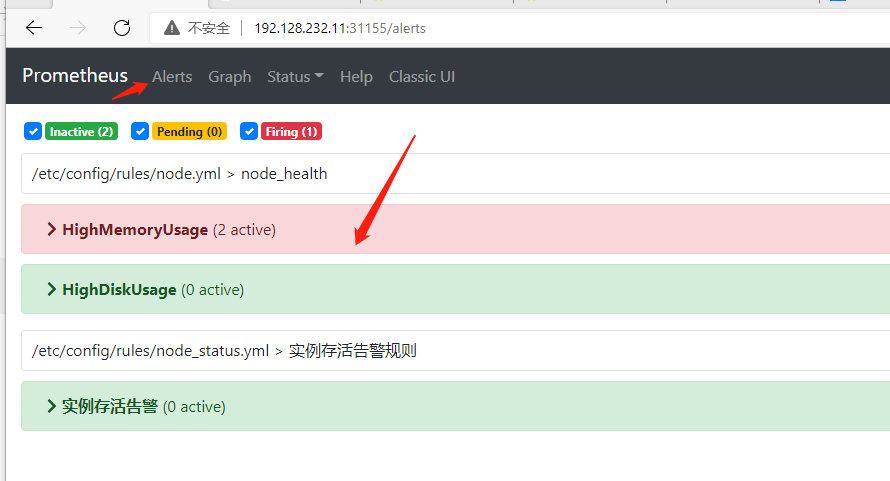

4.查看页面是否增加告警规则
已经成功填加rules告警规则
5.模拟node主机宕机并查看微信告警内容
模拟触发告警
将任意一个node节点的node_exporter停掉即可
[root@k8s-node1 ~]# systemctl stop node_exporter
这篇文章是继上一篇文章“Observability：从零开始创建Java微服务并监控它（一）”的续篇。在上一篇文章中，我们讲述了如何创建一个Javaweb应用，并使用Filebeat来收集应用所生成的日志。在今天的文章中，我来详述如何收集应用的指标，使用APM来监控应用并监督web服务的在线情况。源码可以在地址 https://github.com/liu-xiao-guo/java_observability 进行下载。摄入指标指标被视为可以随时更改的时间点值。当前请求的数量可以改变任何毫秒。你可能有1000个请求的峰值，然后一切都回到一个请求。这也意味着这些指标可能不准确，你还想提取最小/
开门见山|拉取镜像dockerpullelasticsearch:7.16.1|配置存放的目录#存放配置文件的文件夹mkdir-p/opt/docker/elasticsearch/node-1/config#存放数据的文件夹mkdir-p/opt/docker/elasticsearch/node-1/data#存放运行日志的文件夹mkdir-p/opt/docker/elasticsearch/node-1/log#存放IK分词插件的文件夹mkdir-p/opt/docker/elasticsearch/node-1/plugins若你使用了moba，直接右键新建即可如上图所示依次类推创建
是否可以在我的服务器上运行任何工具来监控多个Rails应用程序？我需要监控每个应用程序收到的请求数、每个应用程序使用了多少内存、使用了多少CPU以及其他类似的统计信息。我需要查看每个单独的Rails应用程序的统计信息。 最佳答案 我建议你试试NewRelicRPM.免费版:RPMLiteisthemostwidelyusedsolutionforbasicwebapplicationmonitoring.RPMLiteprovidesapplicationmonitoringforunlimitedJava,RubyorJRubya
文章目录查看ES信息查看节点信息查看分片信息实际场景下ES分片及副本数量应该怎么分关于ES的灵活使用查看ES信息查看版本kibana：GET/查看节点信息GET/_cat/nodes?v解释：ip：集群中节点的ip地址；heap.percent：堆内存的占用百分比；ram.percent：总内存的占用百分比，其实这个不是很准确，因为buff/cache和available也被当作使用内存；cpu：cpu占用百分比；load_1m：1分钟内cpu负载；load_5m：5分钟内cpu负载；load_15m：15分钟内cpu负载；node.role：上图的dilmrt代表全部权限master：*代表
elasticsearch查看当前集群中的master节点是哪个需要使用_cat监控命令，具体如下。查看方法es主节点确定命令，以kibana上查看示例如下：GET_cat/nodesv返回结果示例如下：ipheap.percentram.percentcpuload_1mload_5mload_15mnode.rolemastername172.16.16.188529952.591.701.45mdi-elastic3172.16.16.187329950.990.991.19mdi-elastic2172.16.16.231699940.871.001.03mdi-elastic4172
文章目录一、污点（Taint）1、污点简介2、污点的组成3、污点的设置和去除二、容忍（Tolerations）1、容忍简介2、容忍的基本用法3、示例4、多污点与多容忍配置三、警戒(cordon)和转移(drain)四、Pod启动阶段（相位phase）五、故障排除步骤一、污点（Taint）节点亲和性，是Pod的一种属性（偏好或硬性要求），它使Pod被吸引到一类特定的节点Taint则相反，它使节点能够排斥一类特定的PodTaint和Toleration相互配合，可以用来避免Pod被分配到不合适的节点上。每个节点上都可以应用一个或多个taint，这表示对于那些不能容忍这些taint的Pod，是不会被
我正在寻找一种方法来监视流上的事件，以便我可以确定是否有任何内容通过流。如果有，我将开始使用rtmpdump进行录制。我想象这是通过运行一个每60秒检查一次流的cron任务来实现的。如果它确定流正在通过，则调用rtmpdump开始记录它。如果没有，则什么都不做，并在60秒后再次检查。由于rtmpdump只是在没有流数据时出现错误，因此尝试使用它来监视流似乎不是一个好主意，但也许我错了。如果我在逐个案例的基础上手动执行此操作会很容易，但我正在尝试自动执行自动录制流的任务(如果它们可用)。有没有人遇到过这样做的方法？也许我可以在命令行(linux)中使用其他一些工具？如果有帮助，我正在使用
Kubernetes（K8s）是一个用于管理容器化应用程序的开源平台，可以帮助开发人员更轻松地部署、管理和扩展应用程序。在Kubernetes中，集群划分是一种重要的概念，可以帮助我们更好地组织和管理集群中的节点和资源。本文将介绍如何使用Kubernetes对集群进行划分，并提供详细的操作示例，希望能够帮助读者更好地了解和使用Kubernetes平台。Node划分Node划分是将集群中的节点按照一定的规则进行划分。在Kubernetes中，可以使用NodeSelector和Affinity机制来实现Node划分。NodeSelectorNodeSelector是一种将Pod调度到符合特定节点标
文章目录Kubernetes（k8s）工作负载一、Workloads二、Pod三、Deployment四、RC、RS、DaemonSet、StatefulSet五、Job、CronJob1、Job2、CronJob六、GCKubernetes（k8s）工作负载一、Workloads什么是工作负载（Workloads）工作负载是运行在Kubernetes上的一个应用程序。一个应用很复杂，可能由单个组件或者多个组件共同完成。无论怎样我们可以用一组Pod来表示一个应用，也就是一个工作负载Pod又是一组容器（Containers）所以关系又像是这样工作负载（Workloads）控制一组PodPod控制
前言 前端时间PHP项目部署升级需要，需要把Laravel开发的项目部署K8s上，下面以laravel项目为例，讲解采用yaml文件方式部署项目。一、部署步骤1.创建Dockerfile文件Dockerfile是一个用来构建镜像的文本文件，在容器运行时，需要把项目文件和项目运行所必须的组件安装其中。#基础镜像FROMphp:7.4-fpm#时区ARGTZ=Asia/Shanghai#更换容器时区RUNcp"/usr/share/zoneinfo/$TZ"/etc/localtime&&echo"$TZ">/etc/timezone#替换成阿里apt-get源RUNsed-i"s@http
